Overview

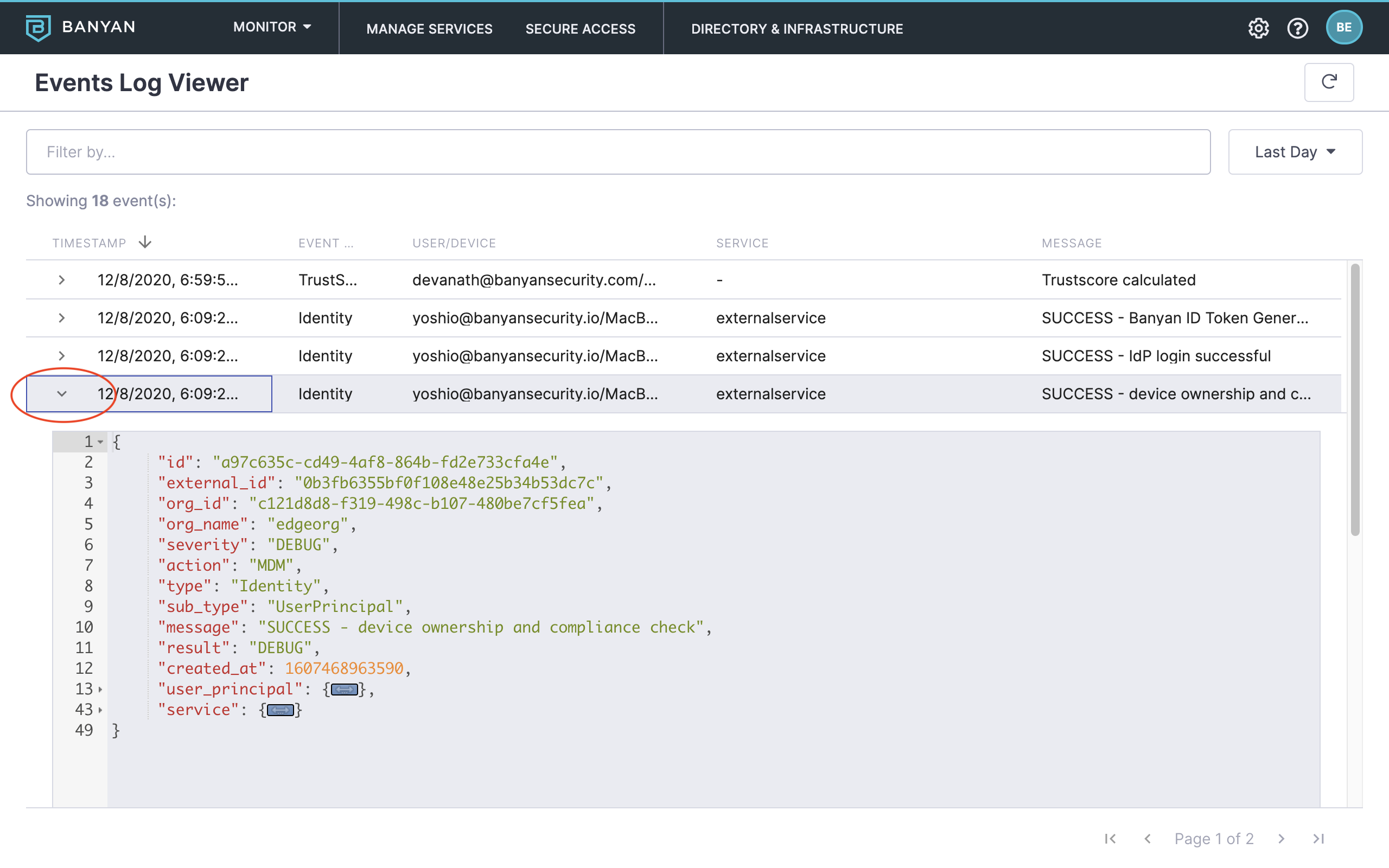

Events allows admins to filter and explore lists of events associated with end user activity in a Cloud Secure Edge (CSE) organization.

Filter Events

Learn more about the Event data structures in the Event Spec - Syntax and the Get Events API endpoint.

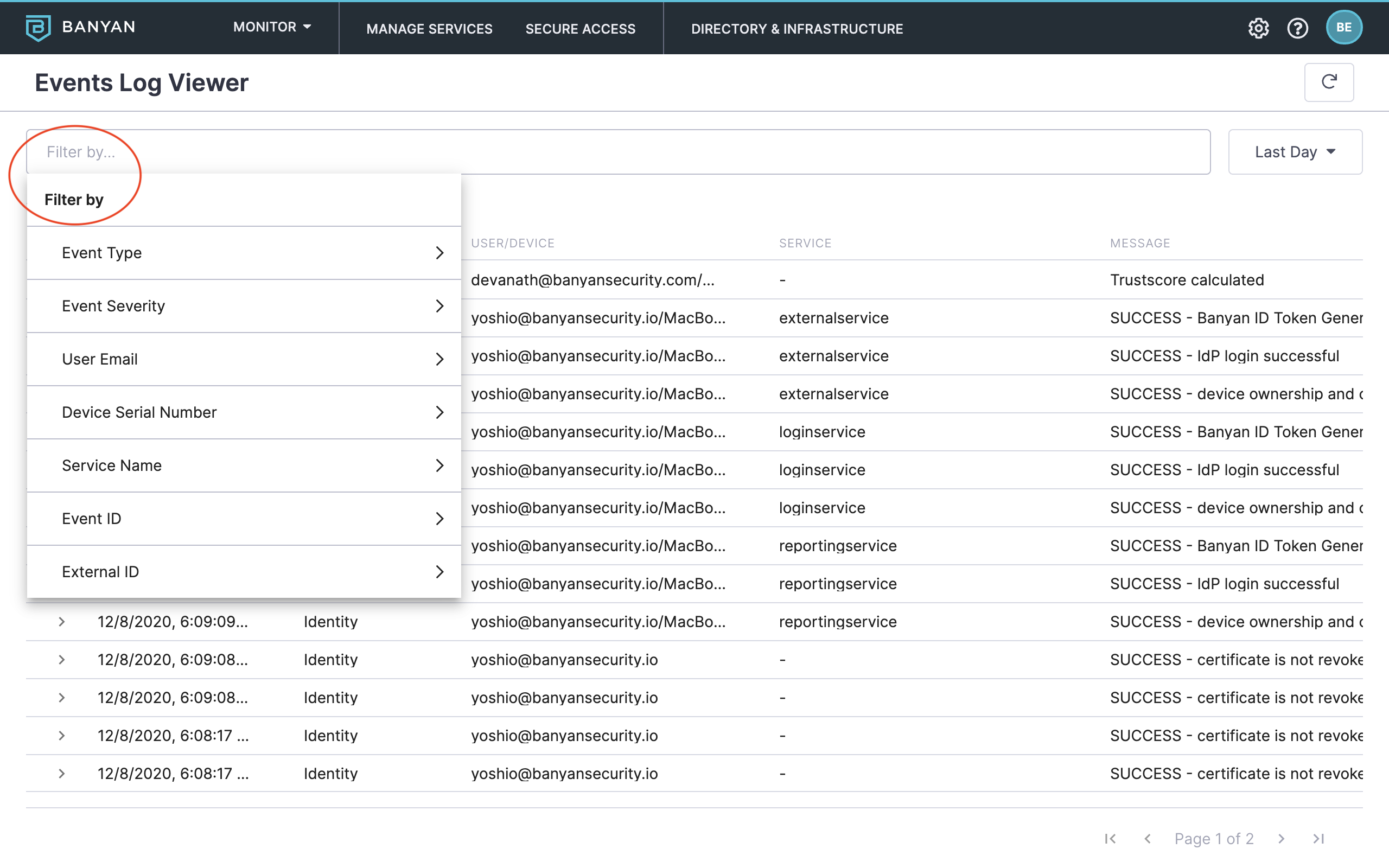

Use the Filter by… to sift through your CSE organization system log according to:

• Event Type - Registration, Identity, Access, Trust Scoring, Audit
• Actions - Unauthorized
• Event Severity - Error, Warn, Info, Debug
• User Email - User’s email address
• Device Serial Number - Device serial number
• Service Name - Name of the service (if applicable)
• Service Tunnels - Name of each Service Tunnel
• Event ID - Unique ID for the event
• External ID - A tracing identifier that was generated external to Banyan Command Center (for example, state value in OpenID Connect authentication requests)

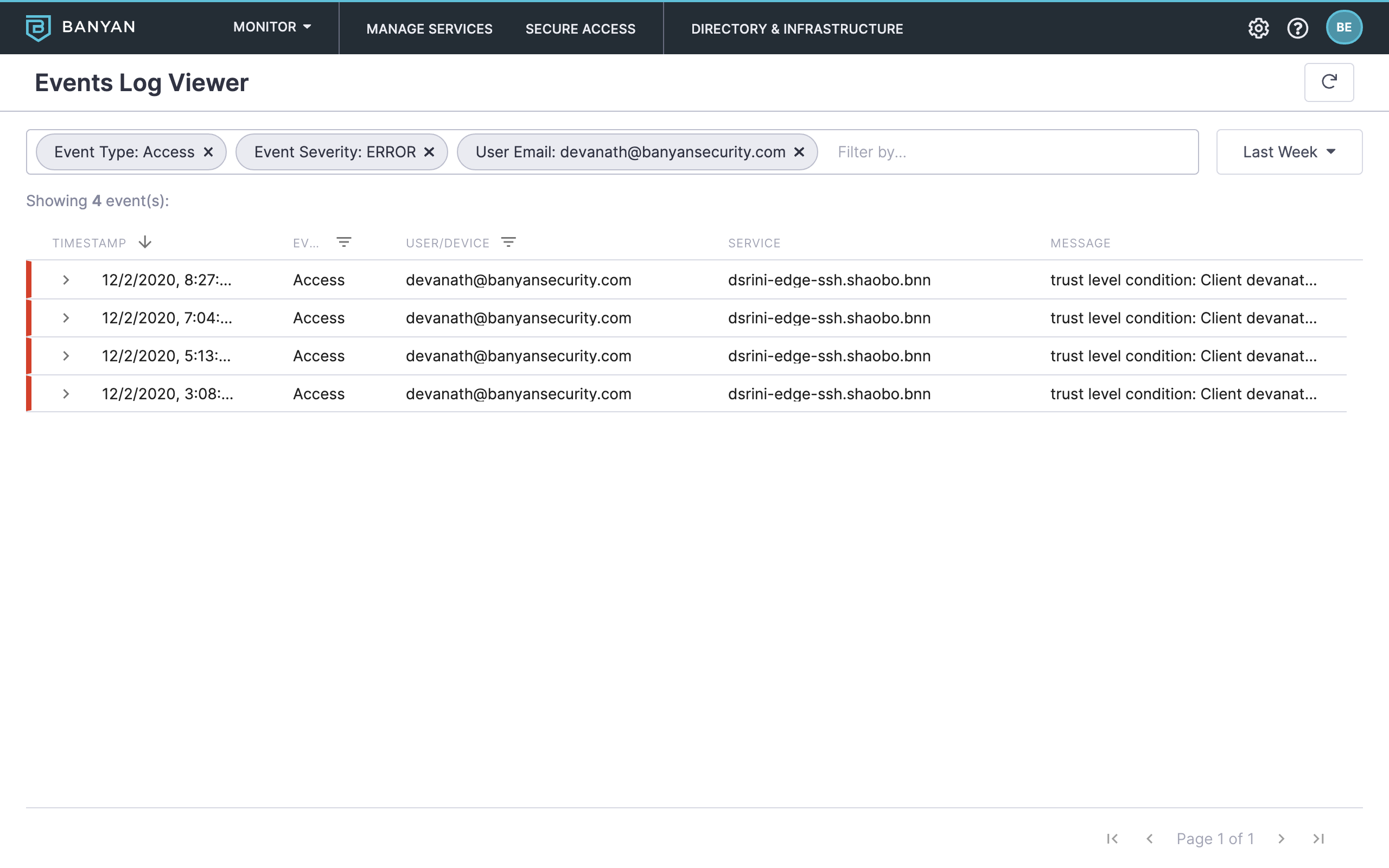

Example: Show denied access attempts for a user

To show access events that were denied for a certain user within the last week, set the date range to Last Week and then filter events in the following order:

• Event Type: Access
• Event Severity: ERROR
• User Email: (user email address)

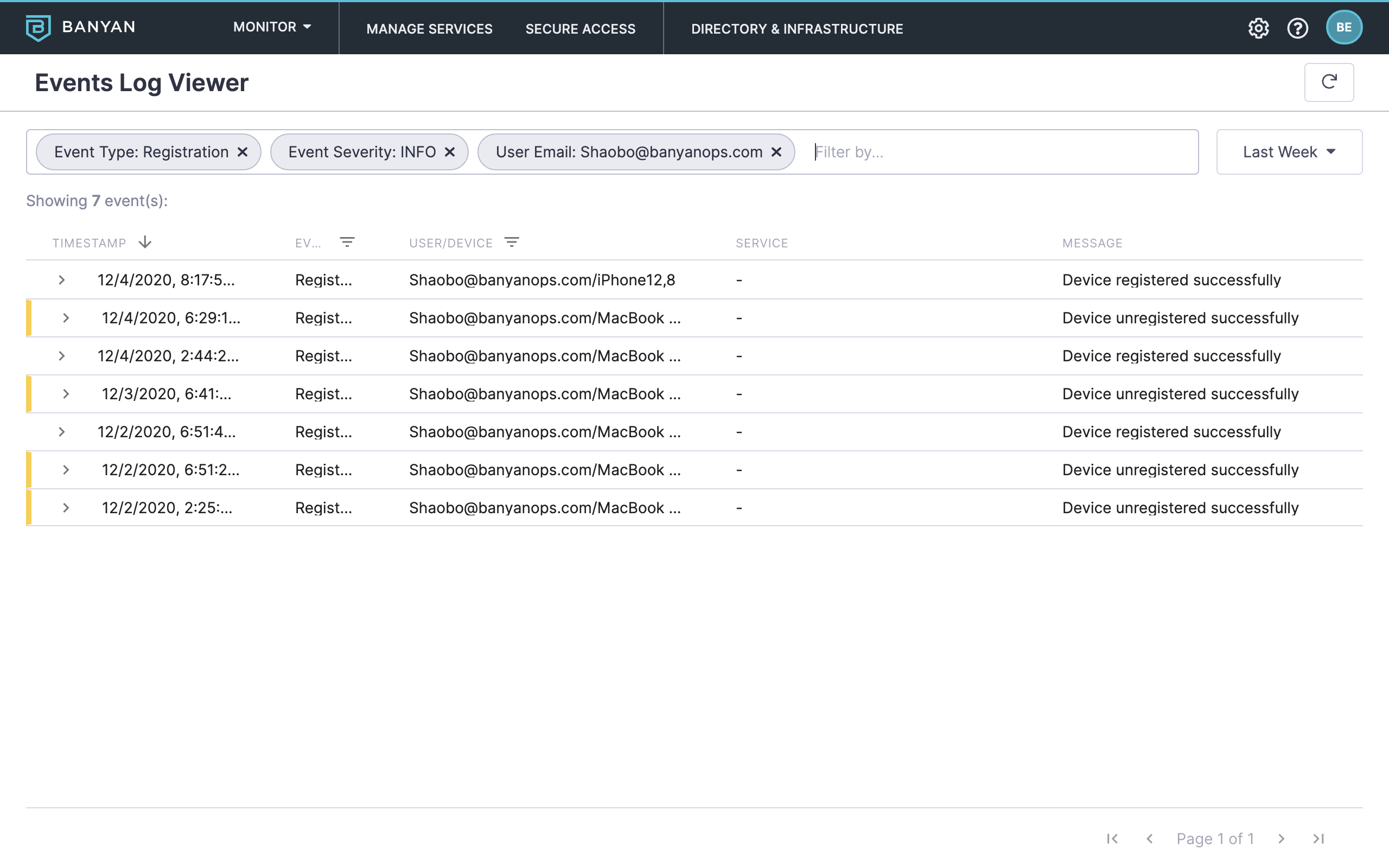

Example: Show device registrations and unregistrations for a user

To show successful registrations and unregistrations for a single within the last week, set the date range to Last Week and then filter events in the following order:

• Event Type: Registration
• Event Severity: INFO
• User Email: (user email address)

Event Logging Retention

• In the Cloud Secure Edge Command Center, the previous 2 weeks or the last 10 thousand events are stored (whichever comes first).
• For Connector or Access Tier, the log files rotate: the default is to retain 5 log files; the rotation occurs when the log file reaches 50 Mb.
